IP66 MILD STEEL ENCLOSURES
Three steel enclosure definitions are available:

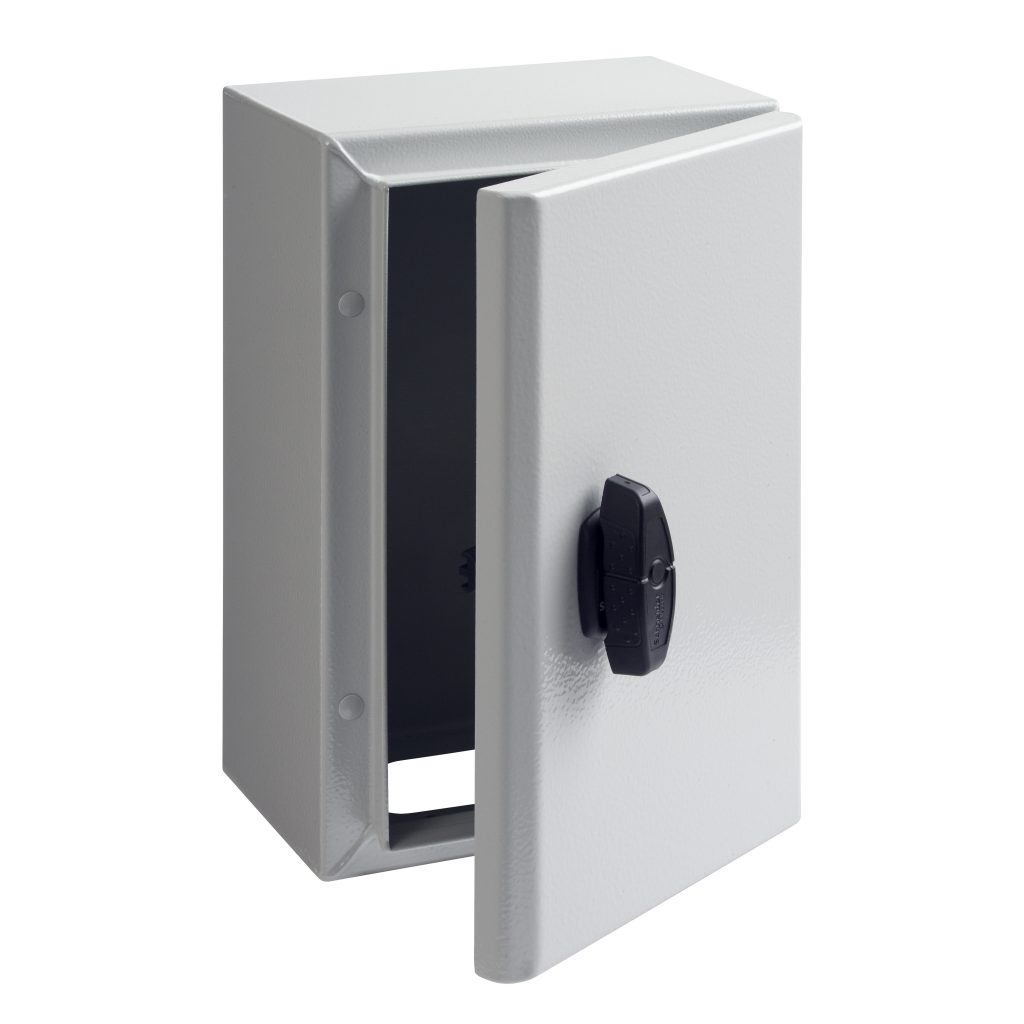

- Enclosure with plain door.

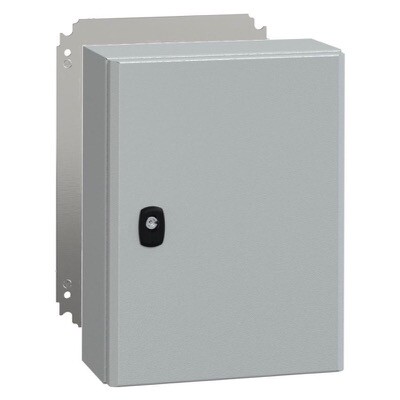

- Enclosure with plain door delivered with a galvanised plain mounting plate, not installed.
- Enclosure with glazed door, 4-mm-thick SecuritR glass.
Structured finish, epoxy-polyester powder, RAL 7035 grey colour.
Get a free quote online today
Technical description:
Enclosure body:
- Single-piece body (cross-shaped structure). Gutter-shaped front profile with double fold. Flat rear.
- 4 (or 6**) M8 x 25 shouldered backstuds for installing mounting plates and step slides, leaving a space of 10 mm behind them.
- M6 x 16 earthing screws for equipotential connection between the door and the body of the enclosure.
- Cable-gland plate with marking for easy drilling and to guarantee the maximum access surface; delivered with the enclosure. This plate is flush with the body of the enclosure.
- Direct wall-mounting (4 x 10 holes for the sealing plugs guaranteeing the IP) or with the help of fixing lugs installed from the outside.
Enclosure door:
- Wall-mounting enclosure supplied with 3-mm double-bar lock as standard.
- Polyurethane door gasket.
- M6 x 16 earthing screws for equipotential connection between the door and the body of the enclosure.
- Easily removable and reversible, with 20-mm return with double thickness granting excellent rigidity, opening to 120°, equipped with 2 or 3 invisible hinges*.
- Door opening to 180° with optional hinges.
- For heights from 600 mm, three locking points with linkage, with a single control point. Simple reversal of linkage. Maximum load: 50 kg/m2.
- A handle is delivered which provides 2 functions:
– Operating key.
– Tool for loosening the stud protection caps. This handle can be solidly attached to the locking system by means of a captive element.
- Perforated rails on the door, with drill holes with a diameter of 4.2 mm in steps of 25 mm:
– 2 vertical rails from the height of 400 mm,
– 2 vertical rails and 2 horizontal rails from the width of 800 mm.
* From the height of 800 mm.
** Widths of 1000 and 1200 mm.
IP66 MILD STEEL
Sizes Available
| Dimensions | No of doors | IP Rating | Weight kg | With mounting plate | Without mounting plate | |||
| Height | Width | Depth | Plain Door | Glazed Door | Plain mounting plate | |||
| 300 | 200 | 150 | 1 | 66 | 3.02 | EPS3D3215P | EMM32 | |
| 300 | 250 | 150 | 1 | 66 | 3.48 | EPS3D32515P | EPS3D32515T | EMM3025 |
| 300 | 300 | 150 | 1 | 66 | 3.9 | EPS3D3315P | EPS3D3315T | EMM33 |
| 300 | 300 | 200 | 1 | 66 | 4.5 | EPS3D3320P | EPS3D3320T | EMM33 |
| 300 | 400 | 150 | 1 | 66 | 4.82 | EPS3D3415P | EPS3D3415T | EMM43 |
| 300 | 400 | 200 | 1 | 66 | 5.6 | EPS3D3420P | EPS3D3420T | EMM43 |
| 400 | 300 | 150 | 1 | 66 | 4.9 | EPS3D4315P | EPS3D4315T | EMM43 |
| 400 | 300 | 200 | 1 | 66 | 5 | EPS3D4320P | EPS3D4320T | EMM43 |
| 400 | 400 | 200 | 1 | 66 | 6.5 | EPS3D4420P | EPS3D4420T | EMM44 |
| 400 | 600 | 200 | 1 | 66 | 10.5 | EPS3D4620P | EPS3D4620T | EMM64 |
| 400 | 600 | 250 | 1 | 66 | 12 | EPS3D4625P | EPS3D4625T | EMM64 |
| 500 | 300 | 200 | 1 | 66 | 7.5 | EPS3D5320P | EPS3D5320T | EMM53 |
| 500 | 400 | 200 | 1 | 66 | 9.3 | EPS3D5420P | EPS3D5420T | EMM54 |
| 500 | 400 | 250 | 1 | 66 | 10.2 | EPS3D5425P | EPS3D5425T | EMM54 |
| 500 | 500 | 200 | 1 | 66 | 11.18 | EPS3D5520P | EPS3D5520T | EMM55 |
| 500 | 500 | 250 | 1 | 66 | 12.06 | EPS3D5525P | EPS3D5525T | EMM55 |
| 600 | 400 | 200 | 1 | 66 | 11 | EPS3D6420P | EPS3D6420T | EMM64 |
| 600 | 400 | 250 | 1 | 66 | 12 | EPS3D6425P | EPS3D6425T | EMM64 |
| 600 | 500 | 250 | 1 | 66 | 16.2 | EPS3D6525P | EPS3D6525T | EMM65 |
| 600 | 600 | 200 | 1 | 66 | 14 | EPS3D6620P | EPS3D6620T | EMM66 |
| 600 | 600 | 250 | 1 | 66 | 15 | EPS3D6625P | EPS3D6625T | EMM66 |
| 600 | 600 | 300 | 1 | 66 | 17 | EPS3D6630P | EPS3D6630T | EMM66 |
| 600 | 600 | 400 | 1 | 66 | 19 | EPS3D6640P | EPS3D6640T | EMM66 |
| 600 | 800 | 300 | 1 | 66 | 25.5 | EPS3D6830P | EPS3D6830T | EMM86 |
| 700 | 500 | 250 | 1 | 66 | 15 | EPS3D7525P | EPS3D7525T | EMM75 |
| 800 | 600 | 200 | 1 | 66 | 21 | EPS3D8620P | EPS3D8620T | EMM86 |
| 800 | 600 | 250 | 1 | 66 | 23 | EPS3D8625P | EPS3D8625T | EMM86 |
| 800 | 600 | 300 | 1 | 66 | 25 | EPS3D8630P | EPS3D8630T | EMM86 |
| 800 | 600 | 400 | 1 | 66 | 29 | EPS3D8640P | EPS3D8640T | EMM86 |
| 800 | 800 | 250 | 1 | 66 | 30 | EPS3D8825P | EPS3D8825T | EMM88 |
| 800 | 800 | 300 | 1 | 66 | 32 | EPS3D8830P | EPS3D8830T | EMM88 |
| 800 | 1000 | 300 | 1 | 66 | 38 | EPS3D81030P | EMM108 | |
| 800 | 1000 | 300 | 2 | 55 | 43.5 | EPS3D81030DP | EMM108 | |
| 800 | 1200 | 300 | 2 | 55 | 46 | EPS3D81230DP | EMM128 | |
| 1000 | 600 | 250 | 1 | 66 | 28 | EPS3D10625P | EPS3D10625T | EMM106 |
| 1000 | 600 | 300 | 1 | 66 | 30.6 | EPS3D10630P | EPS3D10630T | EMM106 |
| 1000 | 600 | 400 | 1 | 66 | 33 | EPS3D10640P | EPS3D10640T | EMM106 |
| 1000 | 800 | 250 | 1 | 66 | 35 | EPS3D10825P | EPS3D10825T | EMM108 |
| 1000 | 800 | 300 | 1 | 66 | 38 | EPS3D10830P | EPS3D10830T | EMM108 |
| 1000 | 800 | 400 | 1 | 66 | 42 | EPS3D10840P | EPS3D10840T | EMM108 |
| 1000 | 1000 | 300 | 1 | 66 | 46 | EPS3D101030P | EPS3D101030T | EMM1010 |
| 1000 | 1000 | 300 | 2 | 55 | 46 | EPS3D101030DP | EPS3D101030DT | EMM1010 |
| 1000 | 1200 | 300 | 2 | 55 | 53 | EPS3D101230DP | EMM1210 | |
| 1000 | 1200 | 400 | 2 | 55 | 60 | EPS3D101240DP | EMM1210 | |
| 1200 | 600 | 300 | 1 | 66 | 37 | EPS3D12630P | EPS3D12630T | EMM126 |
| 1200 | 600 | 400 | 1 | 66 | 42 | EPS3D12640P | EPS3D12640T | EMM126 |
| 1200 | 800 | 300 | 1 | 66 | 45 | EPS3D12830P | EPS3D12830T | EMM128 |
| 1200 | 800 | 400 | 1 | 66 | 49 | EPS3D12840P | EPS3D12840T | EMM128 |
| 1200 | 1000 | 300 | 1 | 66 | 53 | EPS3D121030P | EPS3D121030T | EMM1210 |
| 1200 | 1000 | 300 | 2 | 55 | 54 | EPS3D121030DP | EPS3D121030DT | EMM1210 |
| 1200 | 1000 | 400 | 2 | 55 | 61 | EPS3D121040DP | EMM1210 | |
| 1200 | 1200 | 300 | 2 | 55 | 64 | EPS3D121230DP | EMM1212 | |
| 1200 | 1200 | 400 | 2 | 55 | 90 | EPS3D121240DP | EMM1212 | |
| 1400 | 1000 | 300 | 2 | 55 | 80 | EPS3D141030DP | EMM1410 | |
